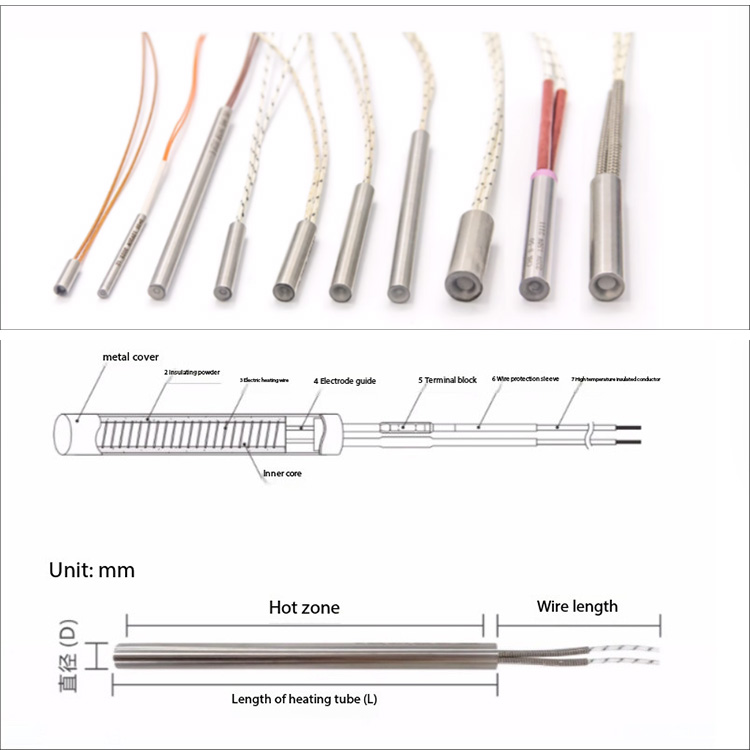

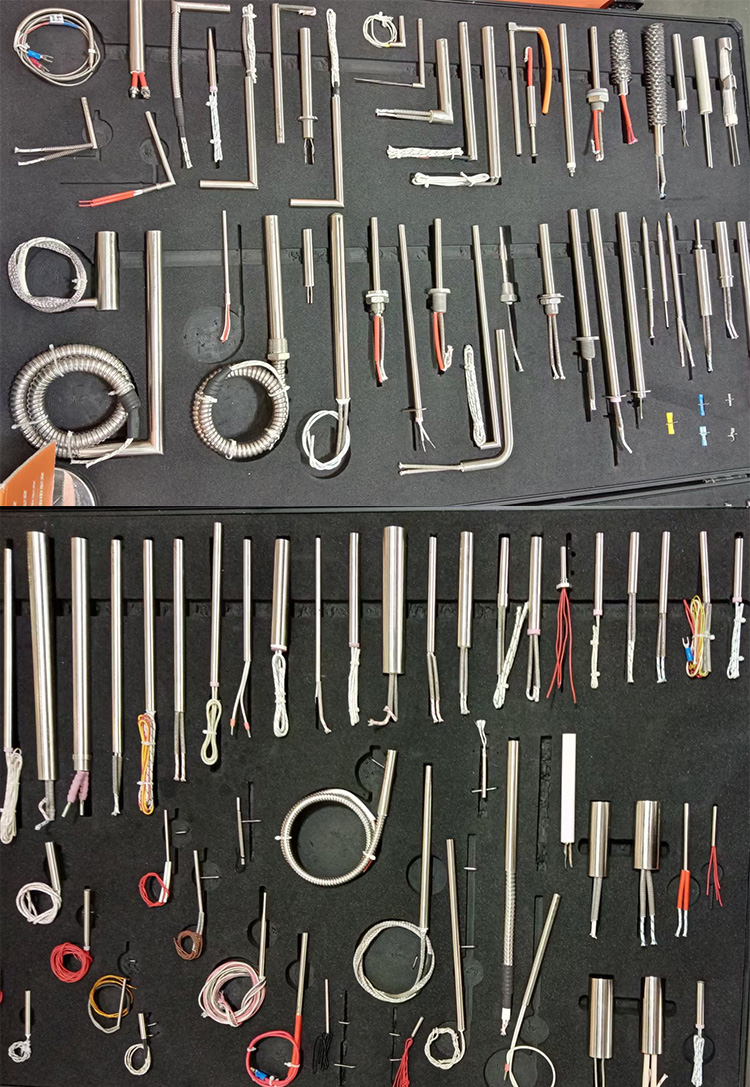

Cartridge heater is made of metal tube filled with high resistance electric heating alloy wire heating material, filled and enriched around the electric heating wire, with good insulation performance. High purity magnesium oxide with high thermal conductivity is used as the filling material. This product has high power, high thermal efficiency, and fast heat dissipation. It is commonly used in plastic packaging, small mold heating, analytical instruments, cigarette industry, footwear industry, semi inverted eutectic welding, input channel heating of die-casting parts, as well as cooling effect during injection without gating and various gas expansion. Single ended heating tubes can be widely used to heat water, oil, air, nitrate solutions, acid solutions, alkali solutions, and low melting point metals (aluminum, zinc, tin, Babbitt alloy)

1,tube diameter D(mm): default negative tolerance -0.01~-0.1mm;2, the length of the tube body L (mm): the default positive and negative tolerance (± 1mm);

3, wire length L (mm): default 300mm;

4, tubular electric heating element voltage (V): DC, AC are required

5 Tubular electric heating element power (W): capacity tolerance (+ 5%,-10%);

6,insulation resistance: 50MΩ (real and empty packaging within 3);

7,pressure standard: 1600 V/ 3S;

8, appearance requirements: visual surface smooth, no scratches, no damage, no depression, etc.9, in strict accordance with the current standard electrical manual wiring;
